Lilliput UQ23 – 23.8” 1200 Nits Portable Production Monitor with 8K Capability

Lilliput UQ23 – 23.8” 1200 Nits Portable Production Monitor with 8K Capability

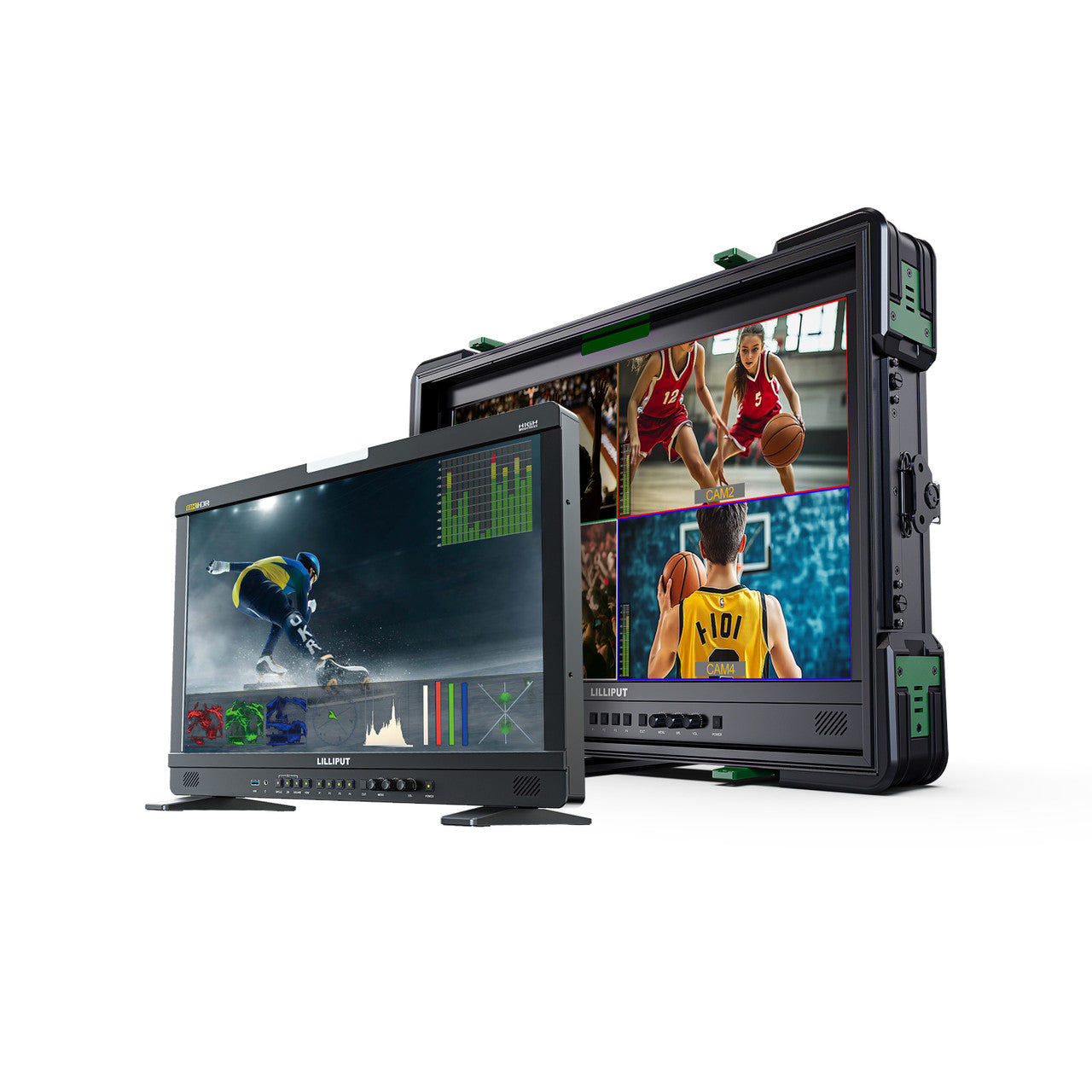

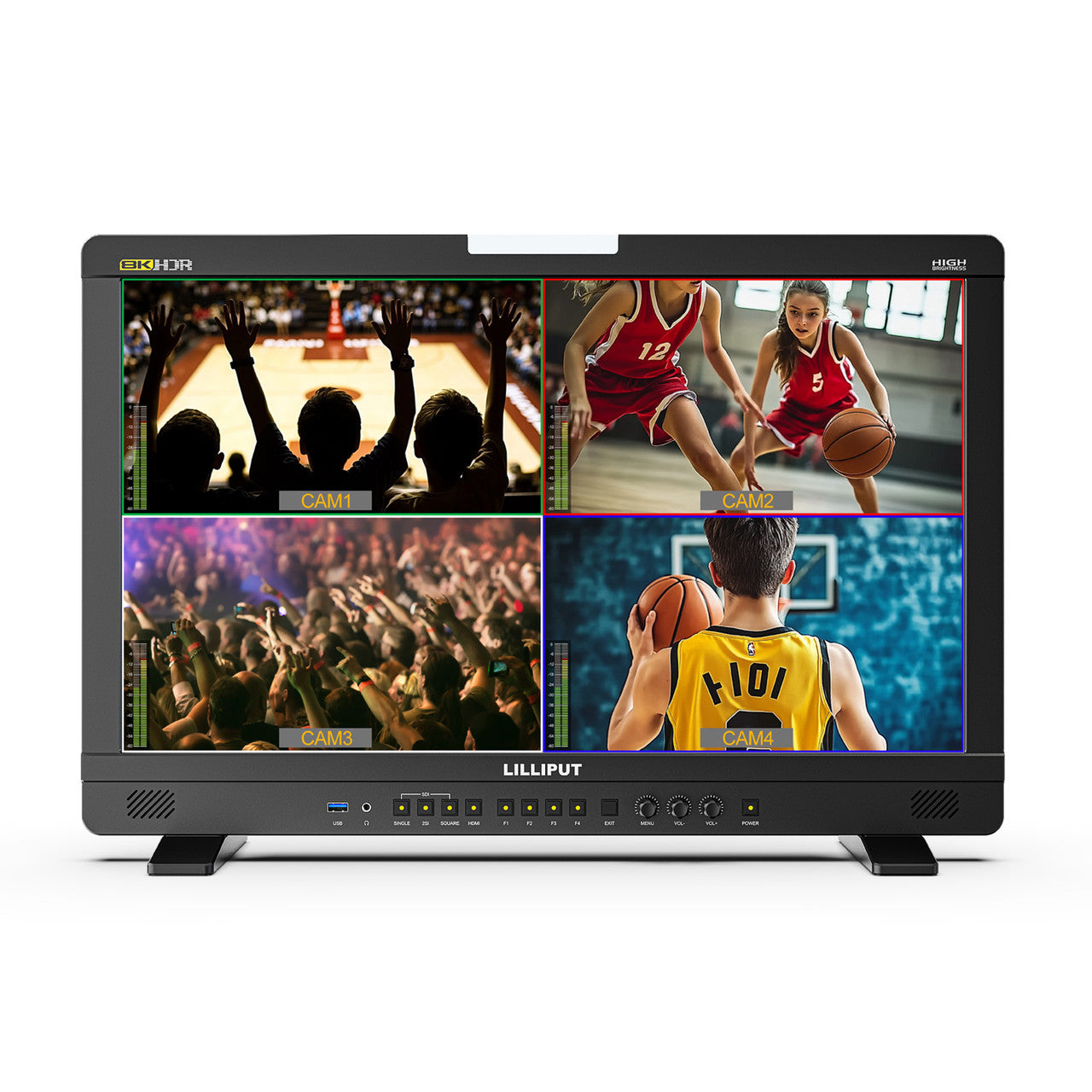

The Lilliput UQ23 is a professional 23.8″ portable production monitor designed for ultra-clear viewing in high-brightness environments. With a native 3840×2160 10-bit IPS display and 1200 cd/m² peak brightness, it offers exceptional clarity for use in studios, OB vans, and on-location shoots.

Equipped with quad 12G-SDI and HDMI 2.1 inputs, plus optional 12G-SFP+ fiber, the UQ23 supports both 4K and 8K video signals. Monitoring tools include waveform, histogram, peaking, false colour, quad view, Lissajous audio, and 3D LUT support via USB. The monitor also supports Rec.709, BT.2020, DCI-P3, and NTSC colour spaces for accurate image reproduction.

Its custom user interface features assignable function buttons, physical control knobs, and remote control capability via RS-422, GPI, or LAN. A pre-installed V-mount battery plate and optional rugged case provide flexible field-ready power and portability.

Key Features:

• 23.8″ 3840×2160 10-bit IPS display

• 1200 cd/m² brightness for daylight visibility

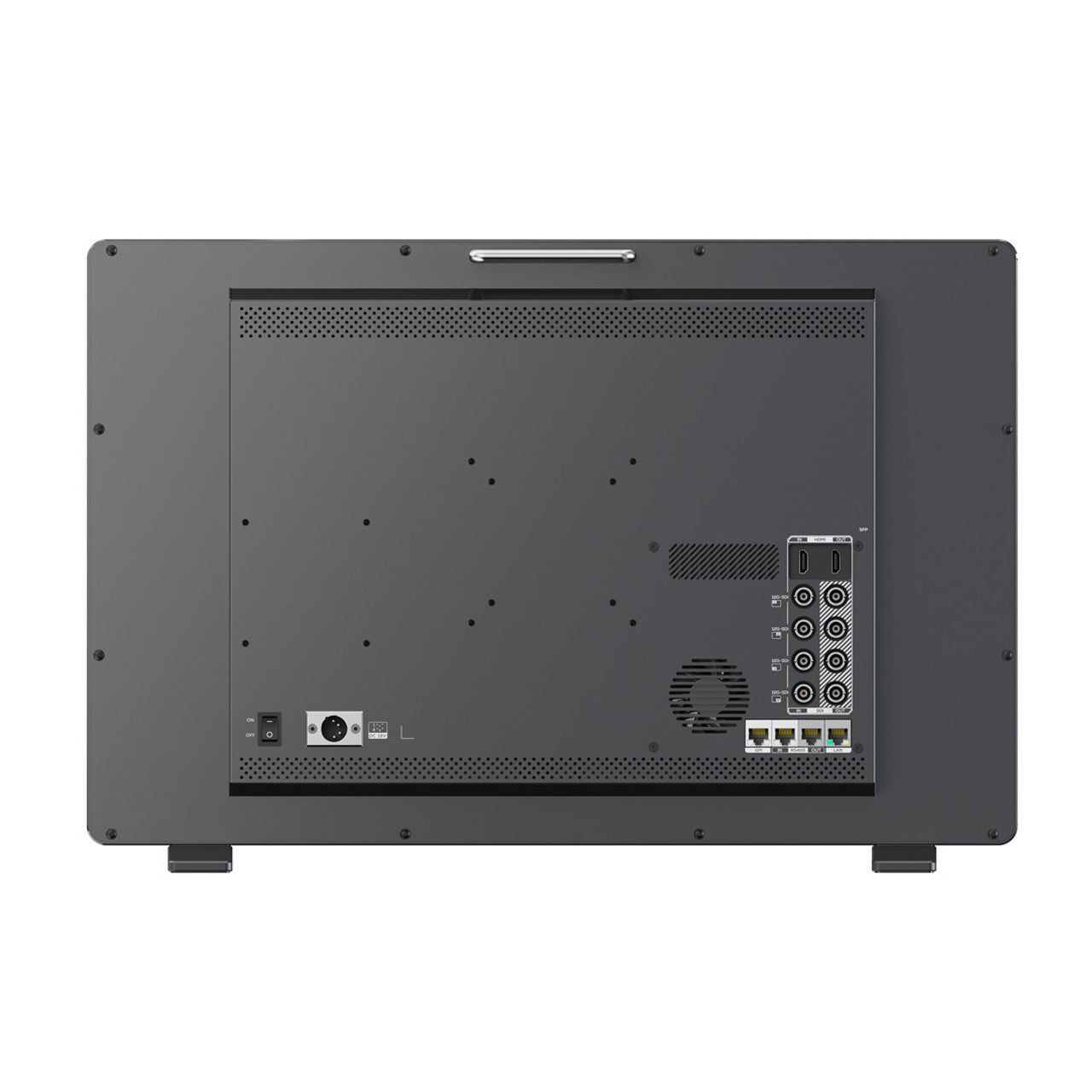

• 4× 12G-SDI inputs/outputs, HDMI 2.1 in/out, optional SFP+ fiber input

• Supports 4K and 8K video signals

• HDR: ST2084 and HLG

• 3D LUT support (.cube files) with up to 4 user LUTs

• 100% Rec.709, plus BT.2020, DCI-P3, and NTSC support

• Monitoring tools: waveform, histogram, peaking, false colour, quad view, audio vector

• Remote control: RS-422, GPI, LAN, and mobile app

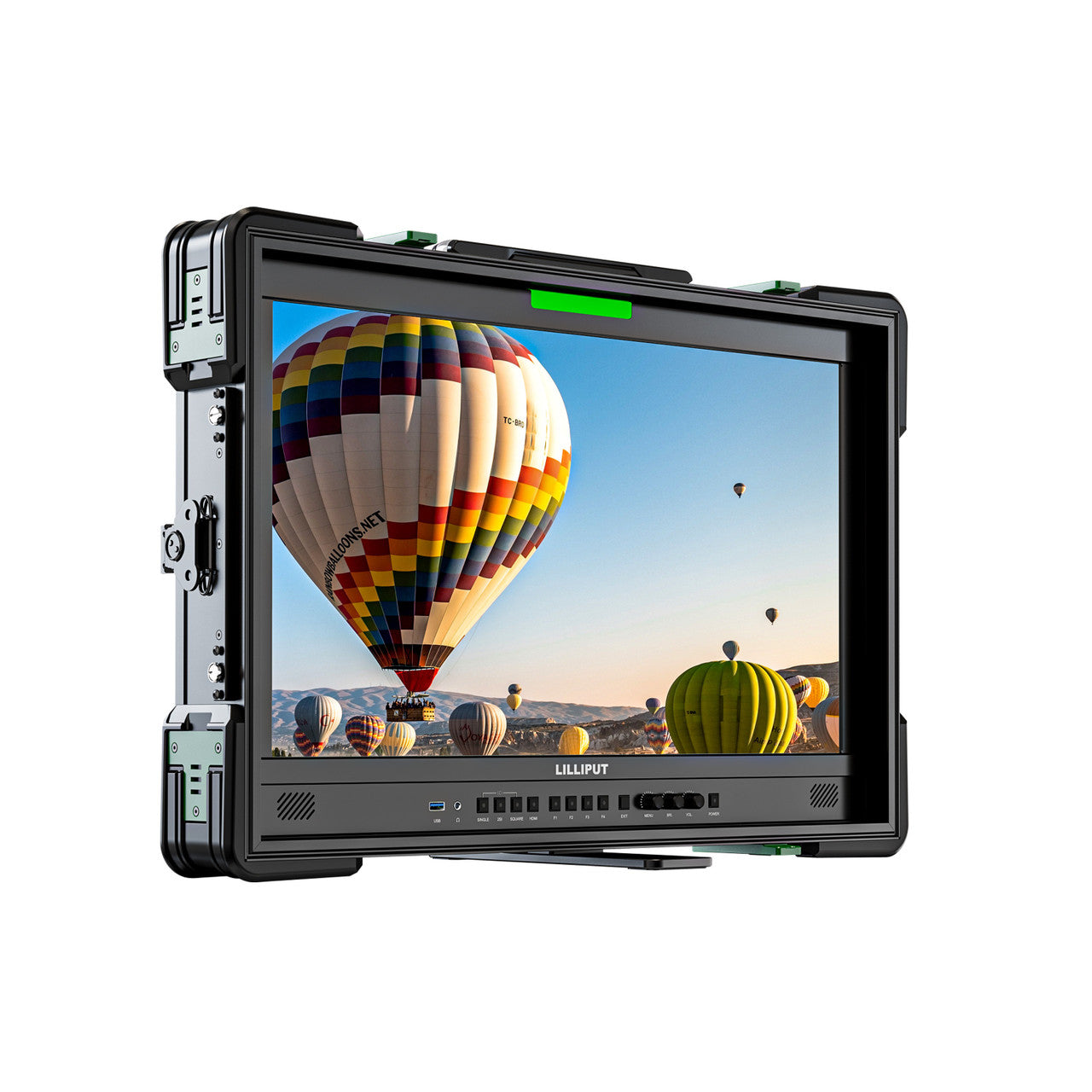

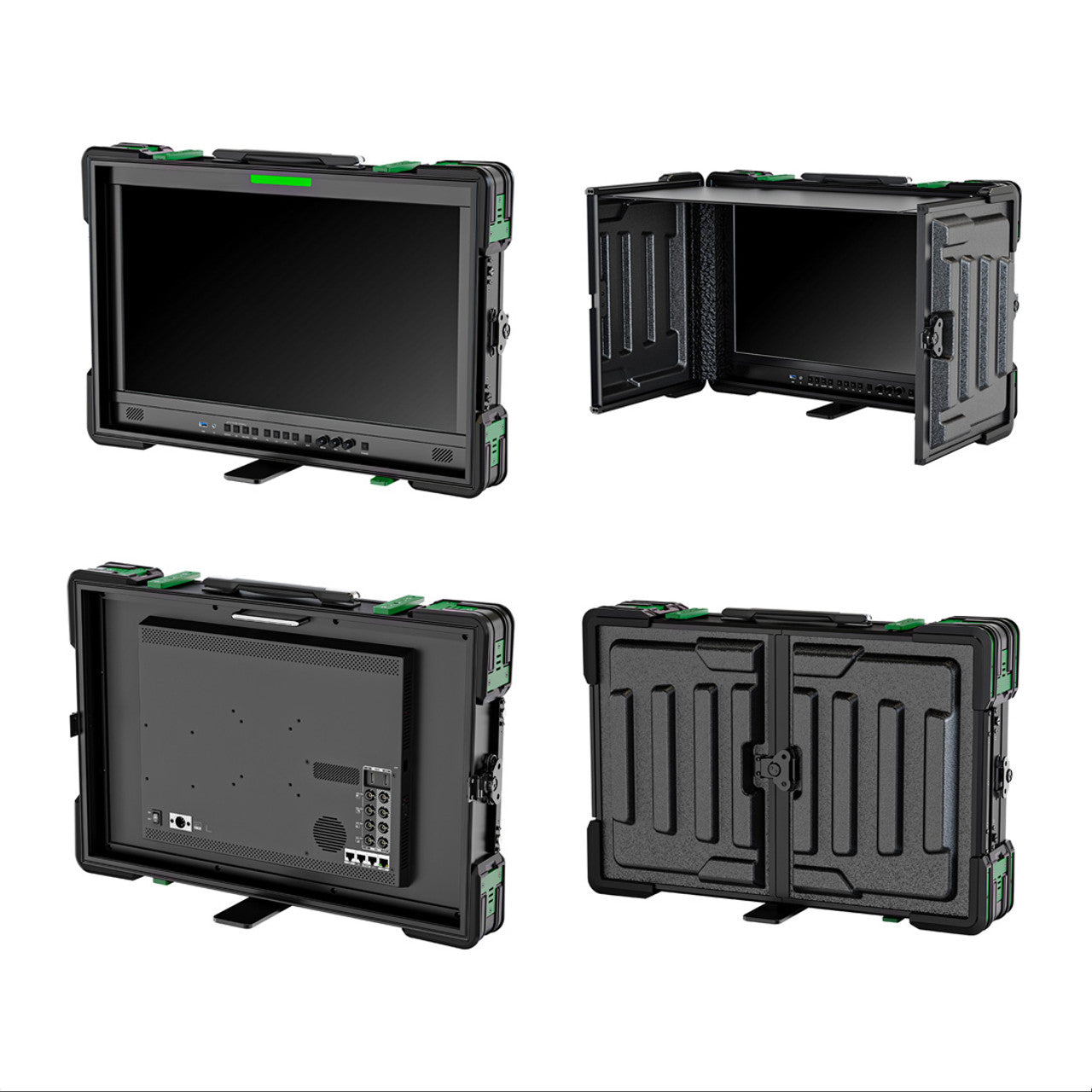

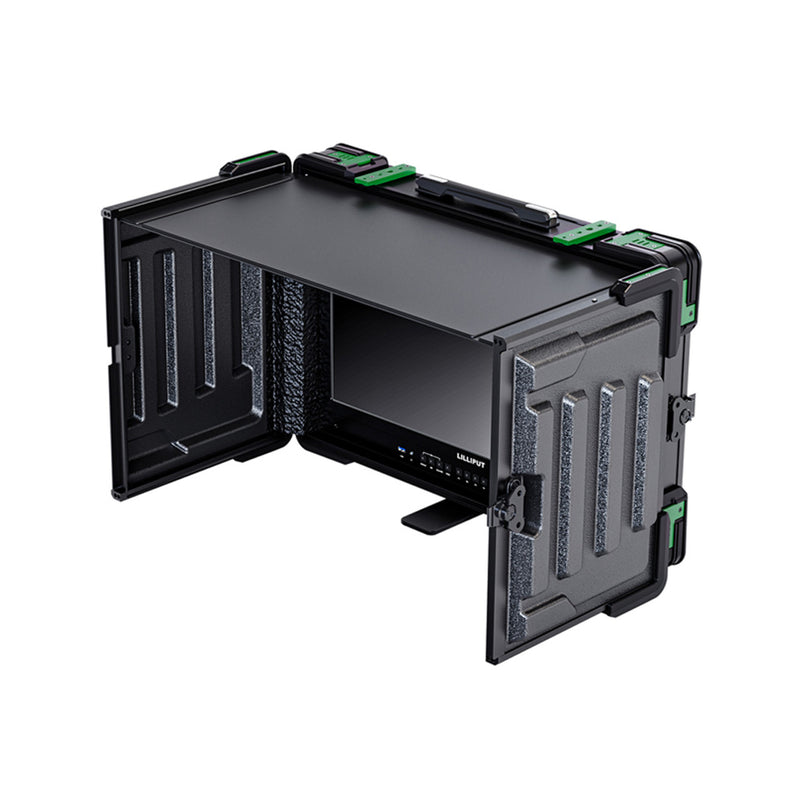

• V-mount battery plate and optional rugged transport case

Ideal For:
Directors, DITs, and production crews who need ultra-bright, high-resolution signal monitoring in demanding indoor and outdoor environments.

What’s in the Box:
▪︎ Lilliput UQ23 Monitor
▪︎ V-mount Battery Plate
▪︎ AC Power Adapter
▪︎ HDMI Cable
▪︎ Tally Connector
▪︎ Quick Start Guide
